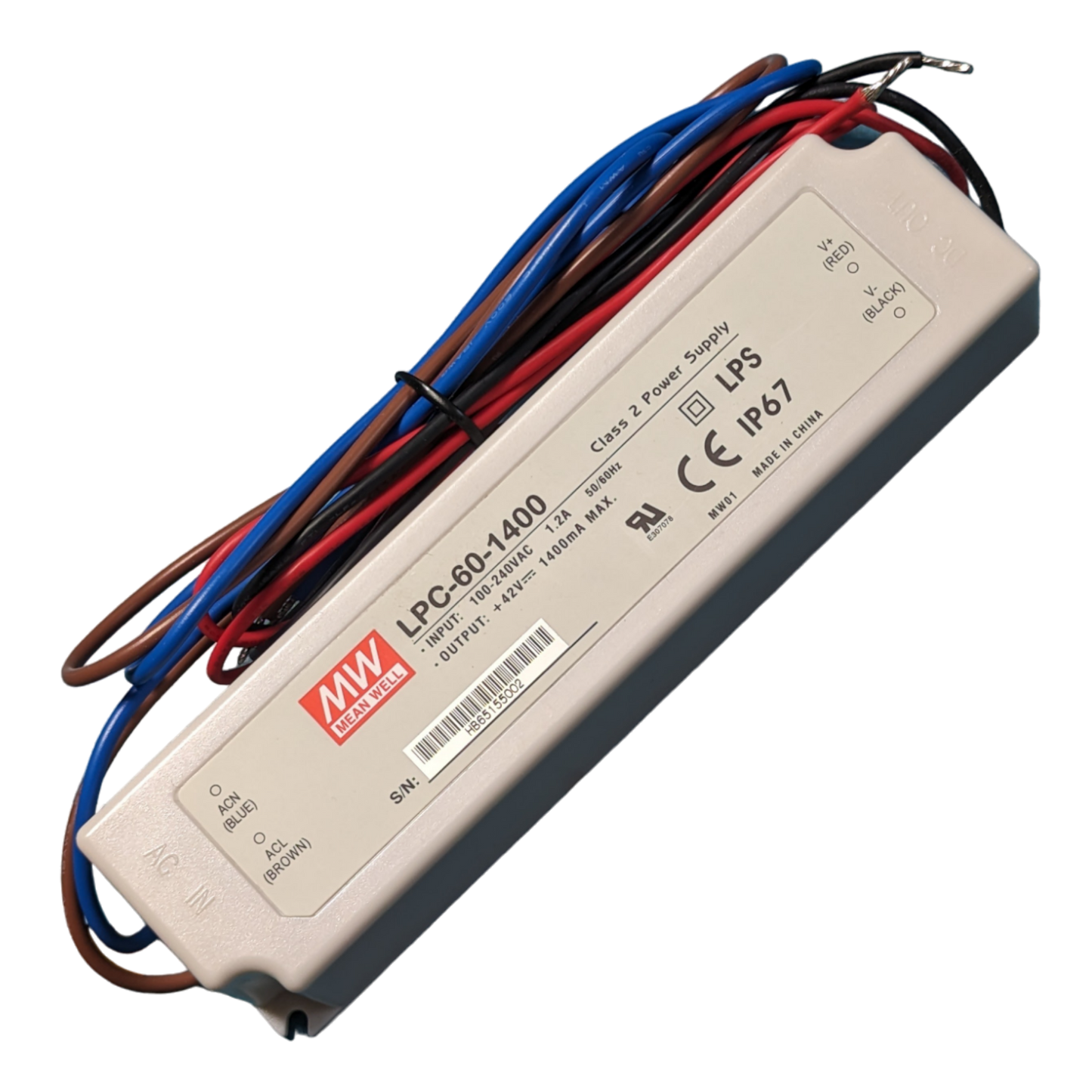

Meanwell LPC-60-1400 LED Driver

60W Single Output Switching Power Supply

• Model: LPC-60-1400
• Manufacturer: Mean Well

Features:

• Constant Current
• Fully encapsulated with IP67 level
• Protections: Short circuit/ Overload/ Over voltage
• Universal AC input/ Full range
• Withstand 300VAC surge input for 5 seconds
• Isolation class II, no F.G.
• Cooling by free air convection
• Class 2 power unit
• Pass LPS
• 100% full load burn-in test
• Low cost, high reliability

Specifications:

• Wattage: 59W
• Input Voltage: 90~264VAC
• Output Current: 1400mA
• Working Temperature: -40~+70°C (refer to output derating curve)
• Safety Standards: UL1310, UL879 approved; Design refer to TUV EN60950-1, EN61347-2-13
• EMC Standards: EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
