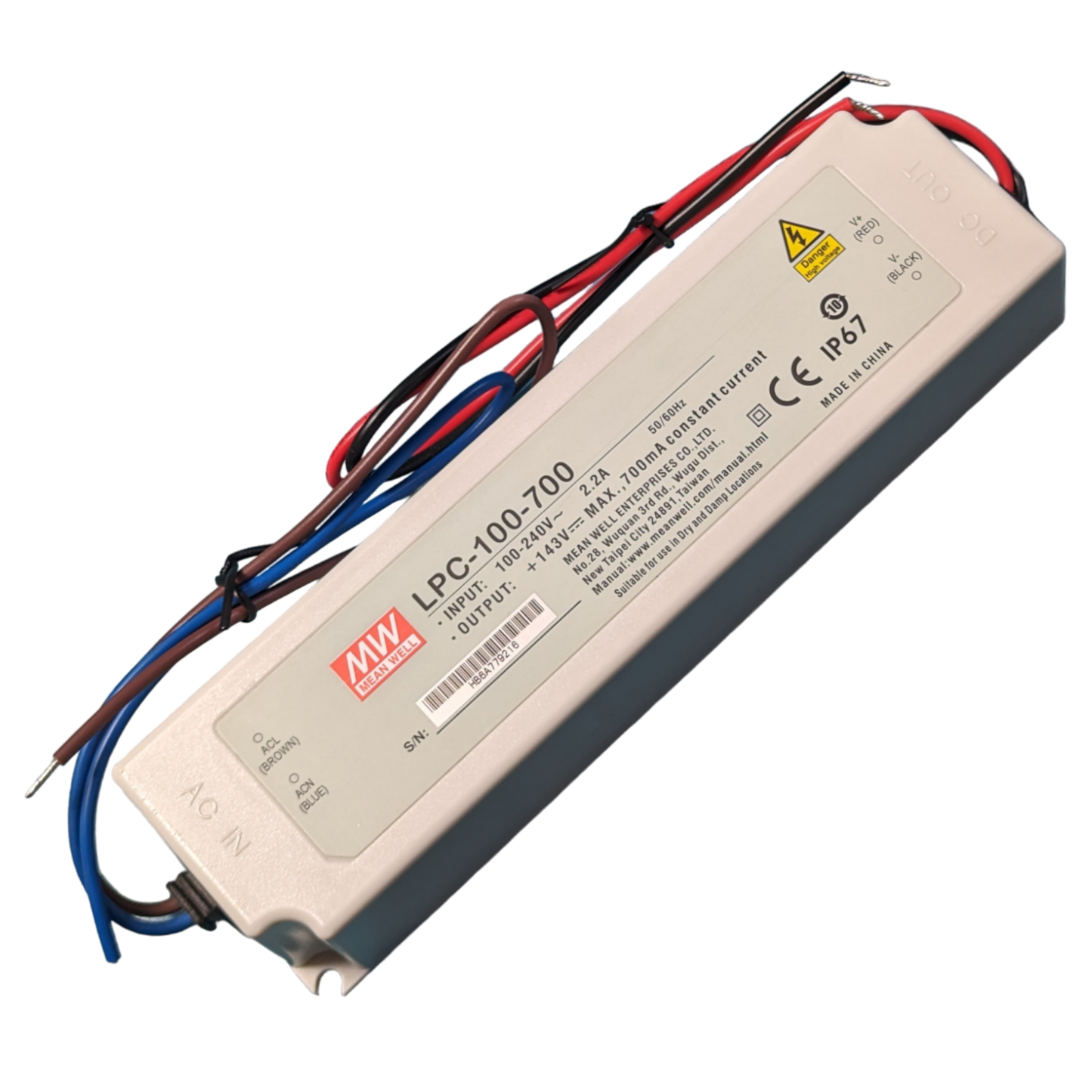

Meanwell LPC-100-700 LED Driver

100W Single Output LED Power Supply

• Model: LPC-100-700
• Manufacturer: Mean Well

Features:

• Constant current design

• Protections: Short circuit / Over voltage
• Universal AC input / Full range
• Withstand 300VAC surge input for 5 seconds
• High efficiency up to 90%
• Cooling by free air convection
• Fully encapsulated with IP67 level
• Fully isolated plastic case
• Class II power unit
• 100% full load burn-in test
• Low Cost, High reliability

Specifications:

• Wattage: 100.1W
• Input Voltage: 90-264VAC
• Output Current: 700mA
• DC Output Adjustment: 72-143V
• Working Temperature: -25-+50°C
• Safety Standards: IP67 approved, Design refer to TUV EN60950-1
• EMC Standards: Compliance to EN55022 (CiSPR22) Class B; EN61000-3-2 Class A(<80% load); EN61000-3-3. Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A.
