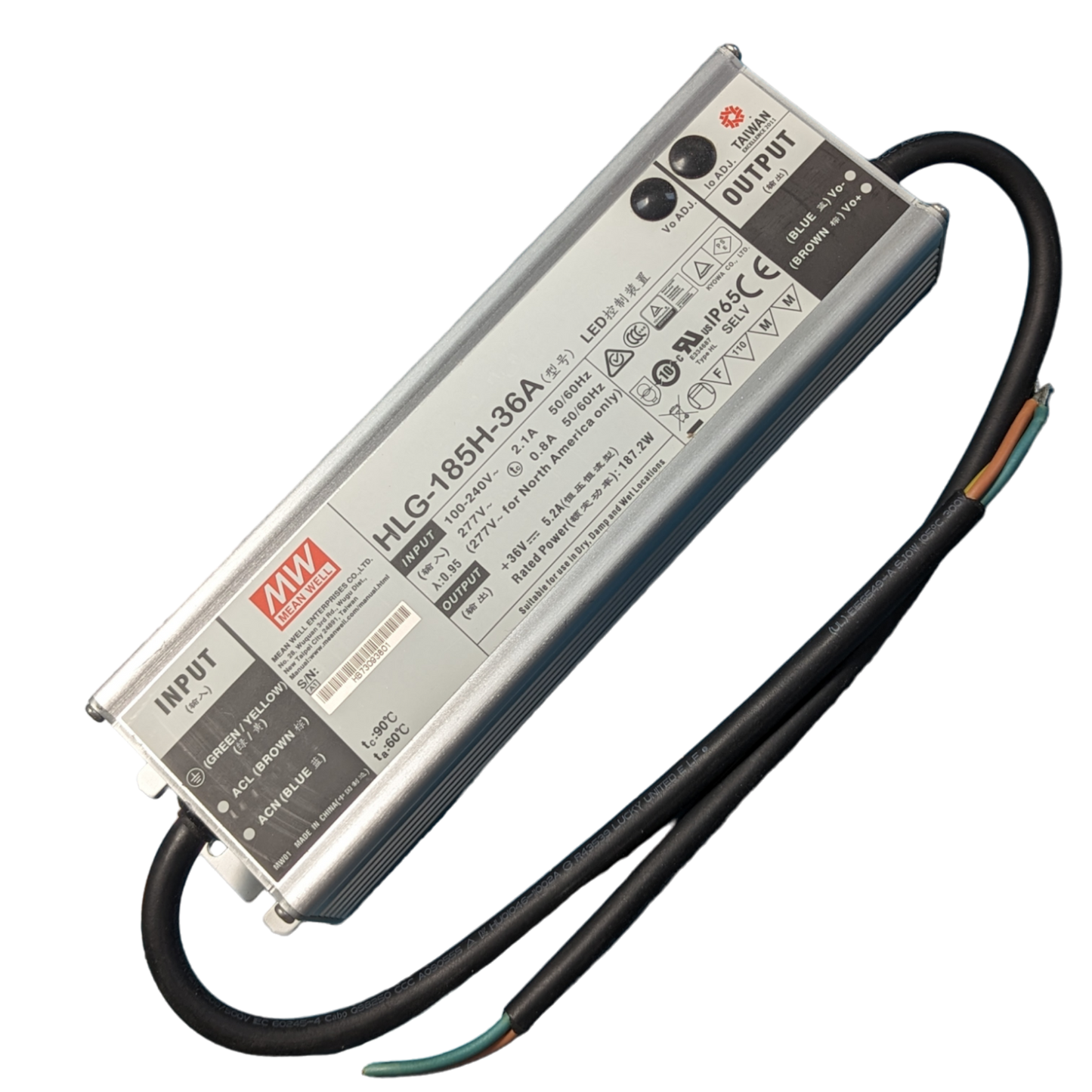

Meanwell HLG-185H-36A LED Driver
Meanwell HLG-185H-36A LED Driver
Regular price
£46.50 GBP
Regular price
Sale price
£46.50 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
185W Constant Voltage LED Driver
Model: HLG-185H-36A
Manufacture: Mean Well
Model: HLG-185H-36A
Manufacture: Mean Well
Features:
- IP67 design for indoor or outdoor installations
- Built-in active PFC, PF>0.9 for 60% of load or higher
- Protections: Short circuit / Over current / Over voltage / Over temperature
- Universal AC input (up to 305VAC) / Full range
- High efficiency up to 95%
- Output current adjustable through output cable or internal potentiometer
- Cooling by free air convection
- Suitable for LED lighting and street lighting applications
- Meet 4KV surge immunity level (IEC61000-4-5)
- Optional CQC models available
- IP67rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
- Wattage: 187
- Input: 90~305VAC, 127~431VDC
- Output: 36V
- Output Voltage Options: Single
- DC output adjustment: 33 ~ 40V
- Safety Standards: UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1
- EMC Standards: EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
